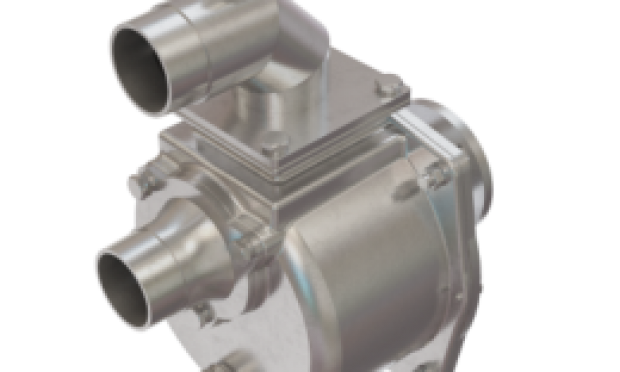

2" Stainless Steel Water Pump for Honda GX200 engine with keyed shaft (Q type).

• Also fits other Brazilian engines with 3/4" shaft, like Buffalo and Branco brands.

Part of the Zanoni water pumps Z00216M and Z00218M.

Self-priming, stainless steel, high-resistant structure, ideal for abrasive and/or corrosive services.

1. Bearing Housing (Z00215M-07);
2. Bearing 6006 (Z00215M-10);
3. 3/4" Shaft (Z00215M-04);
4. Snap Ring I55 (Z00215M-11);
5. Pump Cap (Z00215S-02-01);
6. O'Ring 268 (Z00220-13);
7. Tungsten Seal (Z00231M-17);
8. Keyed Impeller (Z00215-05);
9. Impeller Housing (Z00215-03);
10. O'Ring 336 (Z00215-12);
11. 2" Threaded Outlet (Z00214-02-04);
12. 2" Pump Body (Z00214-02-02);
13. Gasket (Z00210-02-05).

This is the new version of the Z00216-02 pump, now with:

• A silicon carbide and tungsten seal, much more resistant than other materials and which prevents leakage problems (the result of a lot of research done by the company to find the best way to seal);
• A shaft coated in stainless steel, which withstands corrosion for a long time;
• And a bearing housing, which avoids the risk of any liquid leaking into the engine, preserving the proper functioning and life of the equipment.

*Please check with the Zanoni team or with our foreign distributors if the pump is suitable for your engine model before placing the order.
